How to Inspect Brake Rotors Before They Cost You
Share
A brake pedal that pulses, a scraping sound at a stop sign, or a vehicle that takes longer to slow down can point straight to the rotors. Knowing how to inspect brake rotors helps you catch wear before it turns into damaged pads, poor braking, and a bigger parts bill. You do not need a full shop to spot obvious rotor trouble, but accurate measurements matter before you decide whether to reuse, machine, or replace them.
Start Safe and Inspect One End at a Time
Park on level ground, put the transmission in Park or in gear, set the parking brake when working on the front brakes, and chock the wheels that stay on the ground. If you are checking rear rotors, release the parking brake first if that brake uses an internal drum-style parking brake. A stuck parking brake can make the rear rotor difficult to remove.
Loosen the lug nuts before lifting the vehicle. Raise it at the correct factory jacking point, support it with jack stands, and remove the wheel. Never rely on a hydraulic jack alone. Brake work is not the place to rush or take a shortcut.
For a proper inspection, you will want a good light, a brake micrometer, and ideally a dial indicator with a magnetic base. A basic ruler or tape measure is not accurate enough to determine rotor thickness. Keep a wire brush handy too, because rust on the hub surface can create a problem that looks like a warped rotor.

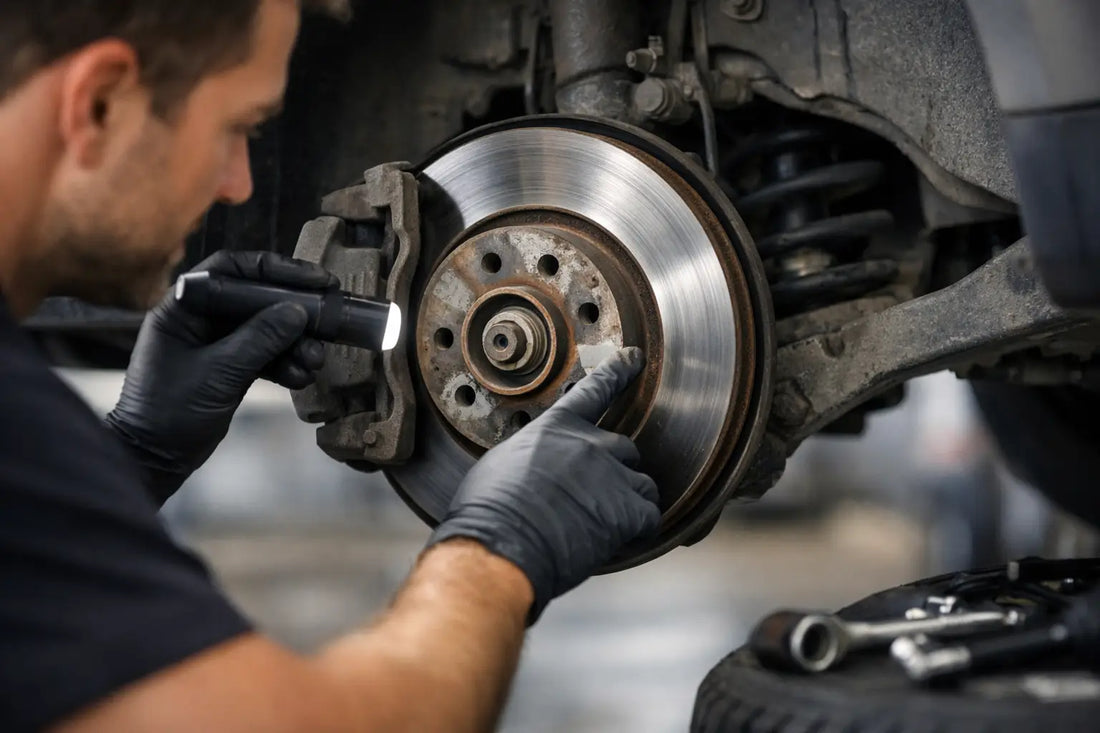

Look at the Rotor Surface First
With the wheel off, inspect both sides of the rotor. The outside face is easy to see, but the inside face often tells the real story. You may need to remove the caliper and bracket to examine it properly. Support the caliper with wire or a hook - do not let it hang from the brake hose.
A light film of orange surface rust after rain or a vehicle sitting overnight is usually normal. It should clear after a few normal brake applications. Rust that remains in patches, especially on the inner rotor face, means the pad may not be contacting evenly. That can happen when caliper slide pins bind, a caliper piston sticks, or the pads are seized in their hardware.
Run your fingertip lightly across the braking surface after the rotor has cooled. A smooth, even surface is what you want. Fine circular marks are normal. Deep grooves you can catch with a fingernail are not. Grooves reduce the pad contact area and can make noise, lower braking performance, and wear new pads unevenly.
Watch for these signs while you inspect:
- A heavy outer lip at the edge of the rotor, which shows the braking surface has worn down.
- Blue, purple, or dark heat spots, which can indicate overheating from hard use or a dragging caliper.
- Radial cracks that run from the center outward, or cracks around drilled holes on performance rotors.
- Flaking rust, rough pitting, or sections where the rotor surface has disappeared.
Check Pads and Hardware While You Are There
A rotor does not wear by itself. Look at the brake pads before deciding what the rotor condition means. If the inside pad is much thinner than the outside pad, suspect seized slide pins or a sticking caliper. If one pad is tapered, the pad may be binding in the bracket or the caliper may not be moving freely.
Also inspect the pad hardware, caliper boots, and flexible brake hose. A collapsed hose can hold pressure in the caliper and keep a pad dragging. Replacing rotors without correcting that underlying issue is wasted money.
If pads have been contaminated by grease, brake fluid, or a leaking caliper, replace the pads. Cleaning a contaminated pad rarely restores consistent braking. When installing new rotors, new pads are generally the right call unless the existing pads are nearly new, evenly worn, and compatible with the rotor surface condition.
Measure Rotor Thickness, Not Just Appearance
The most reliable way to inspect brake rotors is to measure their thickness against the vehicle manufacturer’s minimum specification. Look for the minimum thickness stamped or cast into the rotor hat, or check the factory service information. The number may be marked as “MIN TH,” “MINIMUM TH,” or a similar abbreviation.
Do not confuse minimum thickness with the thickness of a brand-new rotor. A rotor may still look decent but be too thin to safely reuse. Once it reaches or falls below minimum thickness, replace it. Rotors shed heat as they work. A rotor with too little material heats up faster, is more likely to distort, and has less ability to deliver consistent braking under load.
Use a brake micrometer, not a caliper intended for general measuring. Measure about 3/8 inch in from the outer edge, away from the rust lip. Take readings in at least six to eight places around the rotor, checking both different clock positions and both sides of the vehicle.
You are looking for two things: overall thickness and thickness variation. Compare the lowest reading to the minimum specification. Then compare the highest and lowest readings. Even a small thickness difference can create pedal pulsation because the pads are pushed in and out as the rotor turns.
A common mistake is calling every pulsating pedal a “warped rotor.” In many cases, the rotor has uneven thickness caused by pad material transfer, corrosion, or improper break-in. The symptom feels similar from the driver’s seat, but the fix can depend on the rotor’s thickness, surface condition, and runout.
Check Rotor Runout When the Pedal Pulses
Rotor runout means the rotor does not rotate perfectly true. To check it, reinstall the rotor on a clean hub and secure it with a couple of lug nuts and washers. Tighten them evenly so the rotor sits exactly as it does with the wheel installed.
Set up a dial indicator with its tip on the rotor braking surface, roughly halfway between the center and outer edge. Zero the gauge, then slowly rotate the rotor one full turn. The total needle movement is the runout reading. Compare it with the vehicle manufacturer’s specification.
Too much runout can come from the rotor, but it can also come from rust, scale, or debris trapped between the rotor and hub. Remove the rotor and clean the hub face thoroughly with a wire brush or appropriate hub-cleaning tool. Do not grind away metal aggressively. You want a clean, flat mounting surface, not a damaged one.
If runout remains high after the hub is clean, check the hub itself and wheel bearing for play. A loose bearing, damaged hub, or incorrect wheel-nut torque can lead to repeat brake pulsation. Torque the wheels in a star pattern to the manufacturer’s specification. Hammering lug nuts on at random torque is a reliable way to create problems.
Decide Whether to Reuse, Machine, or Replace
Reuse is reasonable only when the rotor is smooth, has no cracks or serious corrosion, measures comfortably above minimum thickness, and has acceptable thickness variation and runout. That situation is more common during a quick inspection than during a full pad replacement.
Machining may be an option if the rotor has minor grooves or uneven material and there is enough thickness left after machining. The finished rotor must still be above its discard specification. On many late-model vehicles, replacement is often the better value because rotor prices are competitive and machining removes useful heat capacity.
Replacement is the right move for rotors below minimum thickness, deeply grooved rotors, cracked rotors, heavily rust-pitted surfaces, serious heat damage, or excessive variation that cannot be corrected within specification. Replace rotors in pairs on the same axle. Installing one new rotor beside one worn rotor can create uneven braking and pedal feel.
Before putting everything back together, clean new rotors with brake cleaner to remove protective oil. Lubricate only the proper contact points on the pad hardware and caliper slides with brake lubricant. Keep lubricant off the pad friction material and rotor face. Then bed in the new pads and rotors according to the pad manufacturer’s procedure.
