How to Locate a Blown Fuse in Any Vehicle

A radio that suddenly goes quiet, a dead power outlet, one headlight out, or windows that will not move can feel like a major electrical problem. Often, it is a small, inexpensive fuse doing its job. Knowing how to locate a blown fuse can save time, prevent unnecessary parts buying, and get you closer to the real repair.

Before you start, pay attention to exactly what stopped working. That detail points you toward the right fuse circuit. If the wipers, heater fan, and power outlets all quit at once, you may be looking for a shared power or accessory fuse. If only the left low-beam headlight is out, start with the fuse or bulb circuit for that specific lamp.

Start With the Owner's Manual and Fuse Box Map

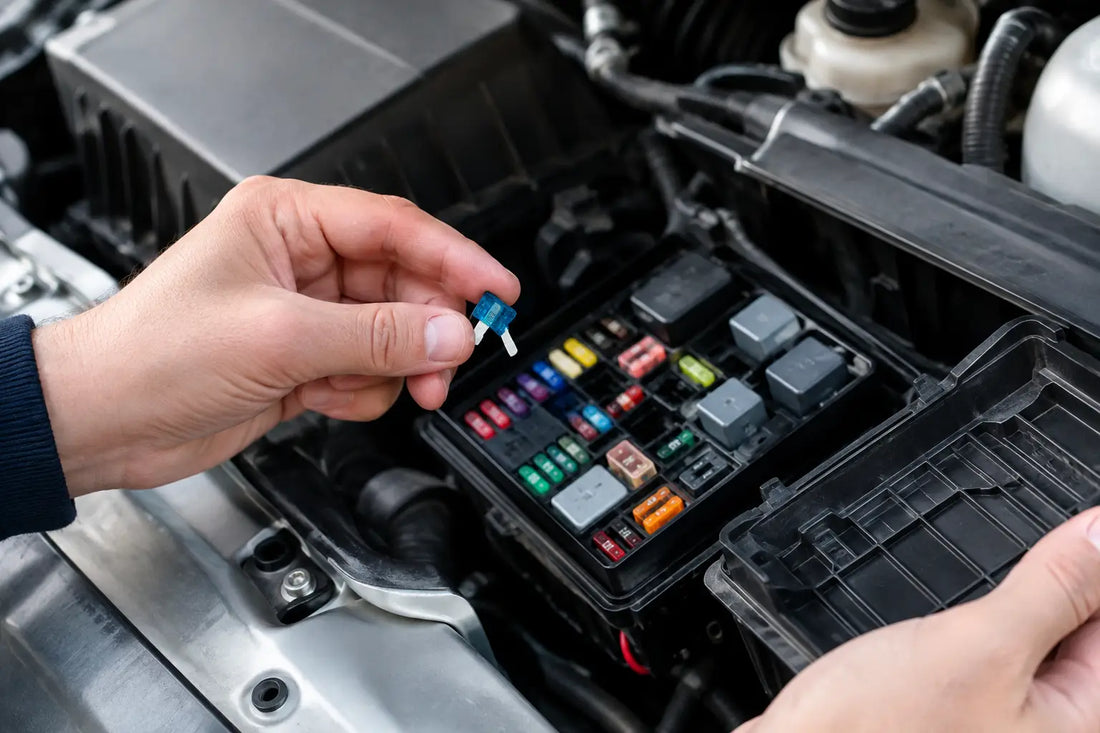

Most vehicles have at least two fuse boxes. One is commonly inside the cabin, often beneath the steering wheel, behind a dash-side panel, in the glove box area, or under a rear seat. The other is usually under the hood near the battery. Trucks, SUVs, and newer vehicles may have additional fuse and relay centers.

Your owner's manual is the fastest way to find the correct box and identify the fuse position. Look under headings such as "Fuses," "Electrical System," or "Fuse Panel." The inside of the fuse-box cover often has a diagram as well. It may use abbreviations such as ACC for accessory, PWR OUTLET for the 12-volt outlet, HVAC for heating and air conditioning, or BCM for the body control module.

Do not guess based only on fuse position. Two vehicles from the same manufacturer can have different layouts depending on engine size, trim package, model year, or options. A fuse map prevents you from pulling the wrong circuit and creating a new problem while chasing the old one.

How to Locate a Blown Fuse Safely

Park on level ground, set the parking brake, and switch the ignition off before opening a fuse panel. For a simple visual check, you usually do not need to disconnect the battery. But if you are working around high-current fuses, battery cables, exposed wiring, or an unfamiliar electrical issue, disconnect the negative battery terminal first.

Use the fuse map to find the circuit connected to the failed item. Pull the fuse with the small plastic puller often stored in the fuse box, or use a fuse puller from a basic tool kit. Avoid using pliers if possible. They can crush a small blade fuse or slip into nearby terminals.

Hold the fuse up to good light. Most blade fuses have a small metal strip visible through clear plastic. A good fuse has an unbroken strip. A blown fuse usually has a gap in that strip, blackened plastic, or visible heat damage.

That visual test works often, but not always. Tiny cracks can be hard to see, and some cartridge-style fuses are not easy to inspect through the housing. When there is any doubt, test the fuse instead of assuming it is good.

Use a Test Light or Multimeter for a Better Answer

A basic test light makes quick work of blade fuses. With the ignition in the position required to power that circuit, touch the test-light probe to the small exposed metal test points on top of the fuse. Check both sides. If the test light illuminates on both points, power is passing through the fuse. If it lights on one side only, the fuse is blown.

A digital multimeter gives a more precise check. Remove the fuse, set the meter to continuity or resistance, and touch a probe to each fuse terminal. A good fuse shows continuity or very low resistance. No continuity means the fuse is open and needs replacement.

Testing matters because a fuse can be good even when a circuit is dead. The problem could be a relay, corroded connector, damaged wire, weak ground, failed switch, or failed component. A fuse protects the circuit. It is not always the cause of the failure.

Match the Fuse Rating Exactly

Every fuse has an amp rating, usually printed on top and identified by color. Common blade-fuse ratings include 5, 7.5, 10, 15, 20, 25, and 30 amps. The replacement must match the original amp rating and fuse type.

Never install a higher-amp fuse to keep it from blowing. That can allow too much current through wiring designed for less load, turning a minor electrical repair into melted wiring or a fire risk. A lower-rated fuse may blow too easily and leave the circuit unusable. Match it exactly.

Also match the physical style. Mini, low-profile mini, standard blade, maxi, cartridge, and J-case fuses are not interchangeable just because the numbers look similar. Bring the old fuse with you if you are unsure. It takes seconds to compare it at the parts counter and prevents a wasted trip.

When a New Fuse Blows Right Away

A fuse that blows once may have failed due to an aging component or a temporary overload. A fuse that blows immediately after replacement is telling you there is an active problem in the circuit. Stop replacing fuses at that point.

Common causes include a wire rubbed through against metal, water in a connector, a damaged trailer wiring harness, a failed blower motor, an aftermarket stereo installation, or a seized power-window motor. In some cases, the issue appears only when a particular feature is used. For example, a fuse may hold until you turn on the rear defroster, plug something into the power outlet, or operate a window.

Pay attention to when the fuse fails. If it blows the instant you turn the key, the short may be on an ignition-fed circuit. If it blows only when you hit the horn, turn on the lights, or run the heater fan, you have narrowed the search. That information helps a repair shop diagnose the issue faster and helps you avoid buying parts that are not needed.

Check These Areas Before Calling It a Fuse Problem

Not every electrical failure is a blown fuse. A dead battery can make several systems act strange at once. Loose or corroded battery terminals can cause intermittent power loss, dim lights, no-start conditions, and warning lights. A failed relay can mimic a blown fuse, especially on cooling fans, fuel pumps, horns, and starter circuits.

For a single inoperative headlight, check the bulb and connector along with the fuse. For a power outlet, inspect the outlet for a coin, metal object, or broken charger tip that may have created a short. For power windows, try each switch and listen for motor noise. These simple checks keep the diagnosis practical.

If you see burned wiring, smell hot plastic, find melted fuse-box terminals, or notice repeated fuse failure, do not keep testing by installing more fuses. That is the point to have the circuit professionally diagnosed. Electrical faults can become more expensive when they are ignored.

Get the Right Fuse Without Delaying the Repair

For everyday maintenance, keep a small assortment of the fuse styles your vehicle uses, plus a fuse puller and a test light. It is a low-cost kit that can save a tow call or a lost workday. Keep the spare fuses dry and labeled, not loose in the glove box where the ratings are impossible to read later.

If you need a replacement, have your vehicle year, make, model, engine size, and the amp rating from the old fuse ready. Auto Know Car Parts in Port Colborne can help match the correct fuse type and rating, along with other electrical parts if the fuse is only the first step in the repair. Call to price out what you need before you make the trip.

A fuse is small, but it gives useful information. Find the correct circuit, test before guessing, and replace only with the exact rating. If the replacement holds, you are back on the road. If it does not, you have a clear sign to stop, protect the vehicle, and track down the underlying fault.
