How to Measure Wiper Blades Before You Buy

A wiper blade that is only an inch too long can hit the windshield trim, overlap the other blade, or leave you with worse visibility than the worn-out set you removed. Before buying replacements, knowing how to measure wiper blades takes a few minutes and can save you a return trip, damaged wiper arms, and a bad surprise during the next hard Niagara rain or snowstorm.

The good news is that most front wiper blades are easy to size. The part that matters is getting the length right, then confirming the attachment fits your vehicle's wiper arm. Do not assume both front blades are the same size. On many cars, trucks, and SUVs, the driver's blade is longer than the passenger-side blade.

How to Measure Wiper Blades Correctly

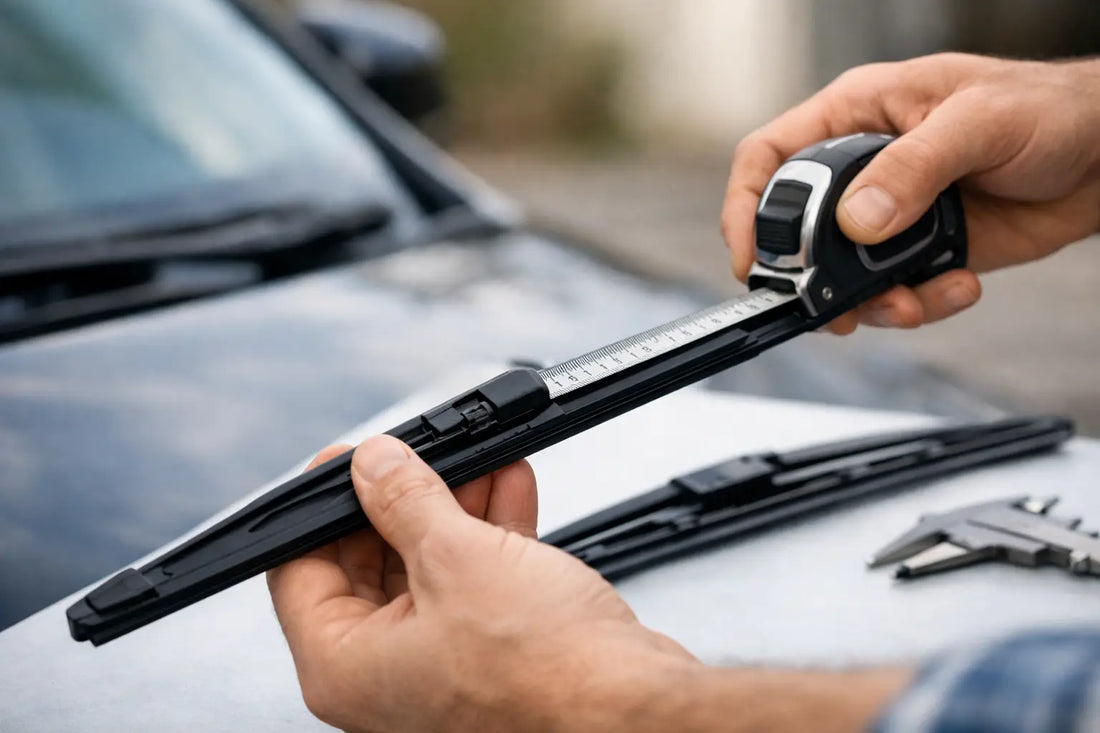

Lift one wiper arm away from the windshield and measure the existing blade from end to end. Use a tape measure and measure the complete blade assembly, including the plastic or metal end caps. Do not measure only the rubber wiping strip. Replacement blades are sold by the overall blade length, usually in whole inches.

For example, if the blade measures 24 inches from one end to the other, you need a 24-inch blade for that position. Measure the driver and passenger blades separately, even if they look close in size. A common setup might use a 24-inch driver's blade and a 20-inch passenger blade, but every vehicle is different.

Keep the blade flat while measuring. Curved beam-style blades can look shorter if you measure across the curve or hold the tape loosely. Run the tape along the blade from tip to tip for the most accurate result.

If the old blade is missing, broken, or clearly not the correct size, do not guess based on the length of the wiper arm. The arm length does not always match the blade length. Check your owner's manual, a vehicle-specific parts catalog, or provide your year, make, model, and engine information to a parts counter professional.

Measure Both Front Blades and the Rear Blade

Front blades are usually sold individually, so write down each size before you shop. Mark them as driver and passenger side. This matters because a blade may physically install on either side but still be the wrong length for the windshield sweep pattern.

If your vehicle has a rear wiper, measure that blade separately. Rear blades often use a different attachment style than front blades, and their sizes can range widely. They are also more likely to require a vehicle-specific blade or a dedicated rear-wiper part number. A universal front blade is not automatically a fit for the back glass.

Check the Wiper Arm Connection Before Buying

Length is only half the job. A blade must also connect securely to the wiper arm. The most common attachment is a J-hook, where the arm ends in a small curved hook. Many replacement blades include an adapter that fits this design.

Other vehicles may use a push button, pinch tab, side pin, bayonet, top lock, or narrow J-hook connection. Look closely at the point where the old blade meets the arm before removing anything. If you can, take a quick photo. It makes it easier to match the new blade at the counter and prevents frustration in the parking lot.

Universal blades are convenient, but they are not always the best answer. Some include several adapters, which can make installation simple on common vehicles. Others may fit technically but sit too high, make contact at the wrong angle, or require an adapter that feels loose. A vehicle-specific blade generally costs more, but it can offer a cleaner fit and easier installation. It depends on the vehicle, the available options, and how long you plan to keep the blades in service.

Do Not Mix Up Blade Length With Refill Length

Some older wiper systems use replaceable rubber refills instead of complete blade assemblies. If you are buying a refill, measure the rubber insert itself and inspect the metal rails, clips, and locking end. Refill lengths and complete blade lengths are not always listed the same way.

For most drivers, replacing the complete blade is the faster choice. New blades include fresh rubber and a new frame or beam structure, so you are not reusing a tired assembly. Refills can make sense if you have a compatible premium blade frame in good condition, but they take more care to install correctly.

Confirm the Size Before Installing New Wipers

Even when your measurement matches the box, hold the new blade beside the old one before attaching it. The lengths should match closely, and the connector should look right for the arm. A blade that is slightly shorter than original may leave a little extra unwiped glass. A blade that is too long can create bigger problems.

Before snapping the blade into place, put a folded towel or piece of cardboard on the windshield under the wiper arm. If the arm slips out of your hand without a blade attached, the bare metal hook can crack or chip the windshield. This is a simple precaution that can prevent an expensive repair.

Once the blade is installed, lower the arm gently. Do not force it down. Run the wipers with washer fluid and watch their movement through a full cycle. The blades should clear each other, stay off the windshield edge and trim, and sweep smoothly without skipping or lifting.

If a new blade chatters, streaks, or leaves a missed section right away, the issue may not be the blade size. Clean the windshield thoroughly, wipe the rubber edge with a damp cloth, and inspect the wiper arm for bent sections or weak spring tension. Road film, wax residue, salt, and dirty glass can make even a new blade perform poorly.

When the Catalog Size and Your Measurement Do Not Match

A catalog lookup based on your exact vehicle is usually more reliable than an old blade that may have been installed incorrectly by a previous owner. If your measurement and the listed size disagree, pause before buying.

Start by checking the vehicle details. Model years can have mid-year changes, and trims with different windshield shapes may use different blades. Verify the body style as well. A sedan, hatchback, wagon, and SUV version of the same model name may not share the same wiper setup.

Next, look at the sweep pattern. If the current blade overlaps the windshield molding, strikes the other blade, or leaves unusual gaps, it may not be the factory-recommended length. In that case, use the correct vehicle lookup rather than copying the old size.

This is where speaking to someone who can check the application is worth the call. Bring the old blade in if possible, or have the year, make, model, trim, and blade measurements ready. At Auto Know Car Parts in Port Colborne, the counter can help confirm the fit and price out replacement options without making you sort through a wall of boxes on your own.

Choose a Blade Style That Fits Your Driving

Once you have the correct size and connector, choose the blade style based on your vehicle and the conditions it sees. Conventional frame blades are often the budget-friendly choice. Their exposed frame uses several pressure points to hold the rubber against the glass, and they work well on many older vehicles.

Beam blades have a smooth, curved design with internal tension. They often provide more even pressure across modern curved windshields and have fewer open areas for snow and ice to pack into. They tend to cost more, but they can be a smart buy for drivers who do a lot of highway travel or face wet, slushy winter conditions.

Hybrid blades combine elements of both designs. They offer a more covered profile than a conventional frame while retaining a supported structure. There is no one best choice for every vehicle. The right blade is one that fits securely, clears the glass properly, and matches the way you drive.

Replace wipers when they streak, chatter, split, or leave a hazy film that does not clear after cleaning the glass. Many drivers wait until visibility is already poor, but a fresh set is cheap insurance before fall rain and winter road spray arrive. Measure carefully, confirm the connector, and test the sweep before you need those blades to work in a downpour.
