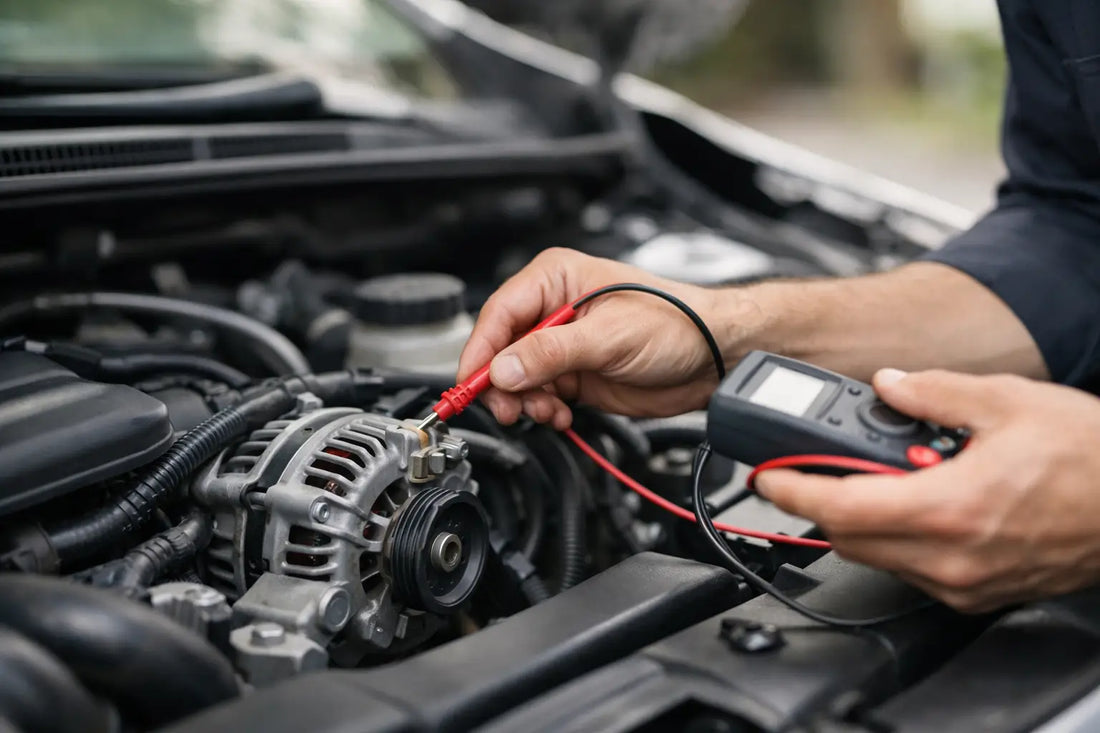

How to Test a Weak Alternator Before It Fails
Share
A car that cranks slowly after a short drive, dims its headlights at idle, or flashes the battery light is not always dealing with a dead battery. Knowing how to test weak alternator output can keep you from replacing a good battery, getting stranded after work, or chasing an electrical problem that gets worse every day.
The alternator keeps the battery charged while the engine is running and supplies power for the vehicle's electrical systems. When it starts falling behind, the battery makes up the difference - until it cannot. A weak alternator may still start the car today, but it can leave you with a no-start tomorrow.
Signs You May Have a Weak Alternator
The battery warning light is the obvious clue, but it does not always come on right away. Pay attention to changes in how the vehicle starts, idles, and powers accessories. Common warning signs include:
- Headlights, dash lights, or interior lights that dim or brighten with engine speed
- Slow cranking, repeated jump-starts, or a battery that keeps going dead
- A whining, grinding, or squealing noise near the drive belt area
- Power windows, blower motors, heated seats, or other accessories operating slowly
What You Need to Test Alternator Output
A basic digital multimeter is the main tool. Set it to DC volts, usually the 20-volt range if your meter is not auto-ranging. You will also want eye protection and a clear view of the battery terminals.
Keep loose clothing, hands, tools, and meter leads away from belts, fans, and pulleys while the engine is running. Do not test an alternator by removing a battery cable with the engine running. That old shortcut can create a voltage spike and damage sensitive modules, electronics, or the alternator itself.
Check the Battery With the Engine Off
Start with the vehicle parked for at least a few hours, ideally overnight. Touch the red meter lead to the positive battery terminal and the black lead to the negative terminal.
A healthy, fully charged 12-volt battery usually reads about 12.6 volts with the engine off. A reading around 12.4 volts means the battery is partly discharged. At 12.2 volts or lower, charge the battery before deciding the alternator is at fault.
This step matters because an alternator test begins with a battery that can accept and hold a charge. A battery with a bad cell may pull charging voltage down or fail under load even when the alternator is working correctly.
Test Charging Voltage at Idle
Start the engine and let it idle. Test across the battery terminals again. On many vehicles, a properly charging alternator will raise voltage to roughly 13.5 to 14.8 volts.
If the reading stays near the engine-off battery voltage, such as 12.2 to 12.6 volts, the alternator is likely not charging enough. Check that the battery connections are clean and tight before condemning the alternator. Also look for a broken, loose, glazed, or slipping serpentine belt.
A reading above about 15 volts can be trouble too. That may point to an overcharging condition, often related to the voltage regulator. Too much voltage can cook a battery, shorten bulb life, and create electrical issues just as surely as too little voltage.
Some late-model vehicles use computer-controlled charging systems. Their voltage can move around based on battery temperature, electrical demand, and driving conditions. A brief reading below 13.5 volts does not automatically mean failure on those vehicles. Check the vehicle's specifications if the numbers are borderline, and look for battery or charging-system messages on the dash.
How to Test a Weak Alternator Under Load
An alternator can show acceptable voltage with no accessories on and still fail when the vehicle needs real power. With the engine idling, turn on the headlights, blower motor, rear defroster, and other major electrical loads. Then watch the multimeter.
Voltage may dip for a moment as the load comes on. It should then recover and generally stay above about 13.2 volts on most conventional systems. If it falls toward 12 volts and continues dropping, the alternator may be weak, the belt may be slipping, or there may be too much resistance in a cable or connection.
Raise engine speed gently to around 1,500 to 2,000 rpm while watching the meter. A weak alternator often improves somewhat with rpm, but that does not make it reliable. If it only charges properly when the engine is revved, it still needs attention.
Watch for a major voltage drop when the radiator fan cycles on or when you turn the steering wheel on a vehicle with hydraulic power steering. Those are useful real-world loads. A healthy charging system should handle them without lights fading dramatically or the voltage sinking into battery-only territory.
Check for AC Ripple From a Bad Diode
Alternators produce alternating current internally, then use diodes to convert it to direct current for the vehicle. A failed diode can reduce alternator output and create electrical noise.
With the engine running, set the multimeter to AC volts and test across the battery. Many good systems show a low AC reading, often under 0.3 volts. A reading around 0.5 volts AC or higher can suggest a diode problem, though meter quality and vehicle design affect the result.
Ripple testing is a useful clue, not a final verdict. If you see high ripple along with dim lights, a battery warning light, or erratic electronics, have the charging system tested with professional equipment before buying parts.
Do Not Skip the Belt, Cables, and Connections
A replacement alternator will not solve a poor connection. Inspect the serpentine belt for cracks, missing ribs, glazing, oil contamination, or a loose tensioner. A belt that squeals when accessories switch on may be slipping instead of turning the alternator at full speed.
Check both battery terminals for white, blue, or green corrosion. Follow the negative cable to its body and engine grounds, and inspect the positive cable and alternator output wire for damage, looseness, or heat discoloration. Resistance in these connections can make a good alternator look weak at the battery.
If the battery is more than a few years old, test it separately. A battery can pass a simple voltage check but fail a load test. The best diagnosis checks battery condition, alternator output, belt condition, and cable voltage drop together.
When It Is Time to Replace the Alternator
Replace or professionally test the alternator when charging voltage is consistently low, it cannot maintain voltage under normal electrical load, the battery light stays on, or you hear bearing noise from the unit. If the alternator has failed, inspect the belt and tensioner at the same time. Installing a new alternator with a slipping belt can send you right back to the counter.
Match the replacement part to the exact year, make, model, engine, and options. Output ratings, pulley styles, connectors, and mounting points can differ within the same vehicle model. For Port Colborne and Niagara Region drivers who need charging-system parts without waiting around, Auto Know Car Parts can help price out the right alternator, battery, belt, or related parts quickly.
A multimeter test takes only a few minutes, and it gives you a much better answer than guessing. Test the system before the next cold morning or long drive - a charging problem is always cheaper to handle in the driveway than on the side of the road.
