Where to Find Car Relays Without Wasting Time

A relay can be a small, inexpensive part, but when it fails, it can leave you with a no-start, dead headlights, an inoperative fuel pump, or a cooling fan that will not come on. If you are asking where to find car relays, there are really two questions: where the relay is located on your vehicle, and where to get the correct replacement without wasting a day chasing the wrong part.

For drivers, DIYers, and repair shops in the Niagara Region, the fastest answer starts with identifying the relay by its job, location, and part number. Relays are not one-size-fits-all, even when two pieces look nearly identical at the counter.

Where to Find Car Relays on Your Vehicle

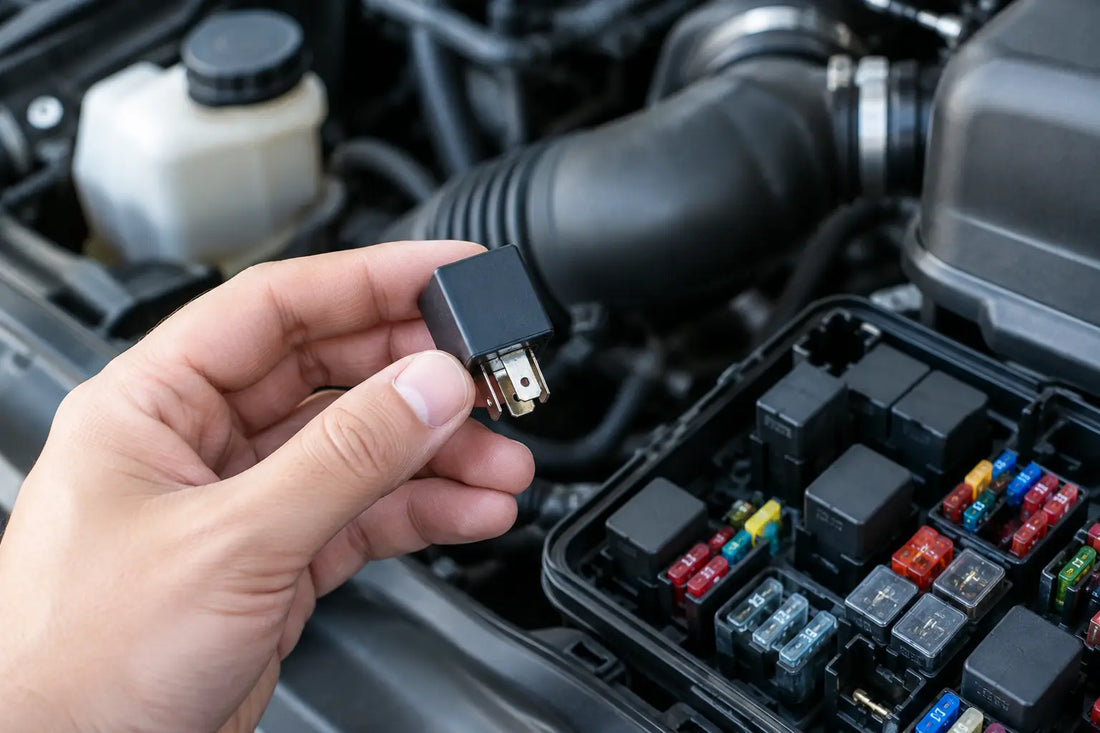

Most vehicles have more than one relay box. The most common place to start is under the hood, near the battery, along the fender well, or close to the firewall. Look for a black plastic fuse and relay box with a removable lid. On many cars and trucks, the underside of that lid has a diagram showing the fuse and relay positions.

The diagram may identify the relay by function. Common labels include fuel pump, horn, starter, A/C clutch, radiator fan, fog lamps, blower motor, power windows, and main relay. Some labels are abbreviated, so a vehicle owner's manual or service information can help confirm what you are looking at.

A second relay panel may be inside the cabin. Check under the dashboard on the driver's side, behind a lower kick panel, near the glove box, or behind a trim panel. This location is common for relays related to interior electronics, accessories, wipers, power locks, and lighting.

Certain vehicles also hide relays in less obvious places. Depending on the make, model, and year, you may find them behind the battery tray, under a seat, in the trunk or cargo area, or built into a larger body control module. That is why guessing based on another vehicle can cost time and money.

Use the Relay Box Diagram First

Before pulling anything out, study the diagram on the fuse-box cover. Match the labeled position, not just the shape or color of the relay. Manufacturers often use the same physical relay case for different circuits, but internal ratings and terminal layouts can vary.

If the cover is missing or unreadable, check the owner's manual. A repair manual or vehicle-specific wiring diagram can also point you to the exact relay location. Have the year, make, model, engine size, and trim level ready. Those details matter, especially on vehicles with multiple engine options or factory towing, premium lighting, or climate-control packages.

How to Tell Whether the Relay Is the Problem

A failed relay does not always look burned or damaged. Many fail internally, which means a quick visual check may tell you nothing. The symptom and a few basic tests usually provide a better direction.

If the horn does not work, the horn relay is worth checking. If the engine cranks but will not start and there is no fuel-pump sound when the key is turned on, the fuel-pump relay may be involved. A cooling fan that never runs, or runs constantly, can also point to a relay issue, though sensors, wiring, fuses, and control modules need to be considered too.

One practical test is to find another relay in the same box with the exact same part number and terminal configuration. If it controls a non-critical circuit, you may be able to swap the two temporarily and see whether the problem moves or disappears. For example, a matching horn relay may help test a suspected A/C clutch relay. Do not force a relay into a slot, and do not swap relays unless the numbers and layout match exactly.

You can also listen and feel for a click while an assistant operates the switch or turns the key. A click does not prove the relay is good, but no click can be a useful clue. A multimeter and wiring diagram are the better choice when you need a confident diagnosis. The relay may be fine while the circuit is missing power, ground, or a command signal.

Where to Find Replacement Car Relays

Once you have identified the suspect relay, local parts availability is usually the next concern. The best source depends on how quickly you need the vehicle back and whether you have a part number.

A local independent parts store is often the practical first call. Bring the old relay if possible, or provide the vehicle details and the numbers printed on the relay case. A parts professional can compare terminal count, amperage rating, mounting style, and application information before you buy. That extra check is worth it when a wrong relay could leave you with the same problem after installation.

Dealership parts departments can supply original-equipment relays for certain applications, particularly newer vehicles or relays integrated into a specific module. The trade-off is usually price and wait time. If the vehicle is down now, a dealership order may not be the quickest route.

Online sellers can offer a wide selection, but part photos can be misleading and shipping does not solve an immediate no-start. They make more sense for uncommon relays when your vehicle is still usable or you are planning ahead. For a vehicle stranded in the driveway or a shop bay tied up by a simple electrical issue, local sourcing is usually the better move.

Used relays from a salvage vehicle can work as a short-term option, but they come with unknown history and no guarantee that internal contacts are healthy. For a critical circuit such as fuel delivery, starter control, or cooling fans, a dependable new replacement is generally the smarter value.

What to Have Ready When You Call for a Relay

The quickest way to price and source the right relay is to provide the full vehicle information: year, make, model, engine, and VIN if available. Then share the relay's part number, the circuit it controls, and whether it came from the under-hood or interior fuse panel.

A clear photo of the top and bottom of the relay can help when numbers are faded. The terminal side matters because two relays may have the same number of pins but different pin assignments. If you have already checked the fuse, say so. That helps narrow down the problem and avoids buying parts blindly.

For Port Colborne and Niagara Region drivers, Auto Know Car Parts can check in-store availability and source many requested parts quickly through its broad supplier network. Call with your vehicle details before making the trip. A part requested early in the day may be available the same day, while other applications can often be brought in for the following day.

Do Not Ignore the Cause of a Failed Relay

Relays can wear out from normal use, especially in high-load circuits like cooling fans and fuel pumps. But a relay can also fail because the circuit is drawing too much current. A worn fan motor, corroded connector, damaged wiring, failing fuel pump, or poor ground can overheat relay contacts and shorten the life of the replacement.

If a new relay fails quickly, stop replacing relays and test the circuit. Look for melted plastic around the relay socket, loose terminals, corrosion, or a burnt electrical smell. These signs point to a connection or load problem that needs repair before the vehicle is put back into regular service.

Be careful around airbag circuits, hybrid and electric vehicle systems, and high-current battery connections. If you are unsure which relay you are handling or the problem involves multiple electrical symptoms, getting a qualified technician involved can save more money than repeated trial-and-error parts purchases.

A relay problem is often a quick repair when the part is identified correctly. Start with the fuse-box diagram, verify the relay number instead of guessing by appearance, and call ahead with your vehicle information. That is the best way to get the right part, keep your repair moving, and get back on the road without paying for unnecessary downtime.
